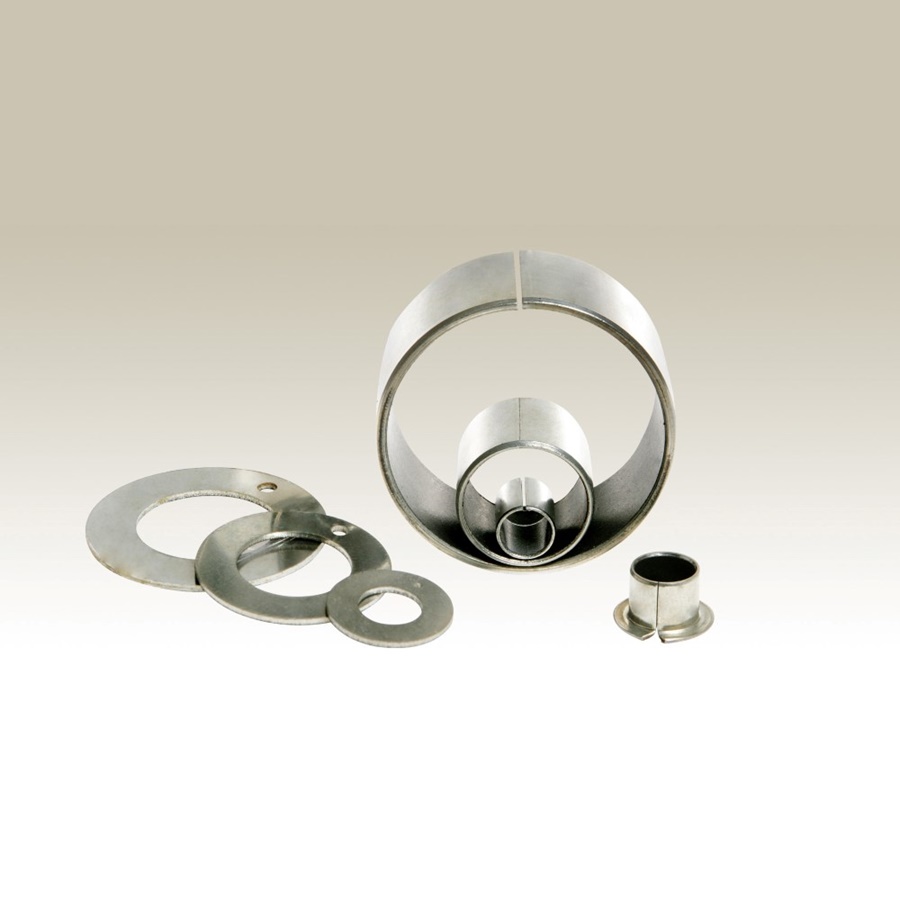

Sliding bearings Carbon steel + Bronze + PTFE

PRODUCT DETAILS

  • Type: OUR PRODUCTS
  • Category: Bushings and sliding bearings

Alloy composition=Steel Sintered bronze/ PTFE


High Mechanical resistance: Good electrical and thermal conductivity.
Chemical inertia to industrial solvents.
Fluid presence increases performance.
Stick slip almost absent.
Shafts recommended in iron alloy, stainless steels, chrome plated or anodized alluminium; not recommended in bronze, alluminium and phosphate-coated and nickel plated (max roughness 0,24 m CLA).

Recommended shafts tolerances: 3-4=h6 5-75=f7 80-300=h8
Recommended seat tolerances: 3-4=H6 5-300=H7


CHARACTERISTICS

Max static load 150N/mm2
Max dynamic load 1,5N/mm2 x m/sec.
Max sliding speed 2,5m/sec.
Working temperature -200/+290°C
Thermal conductivity 46W/mxK
Friction factor 0,03-0,25
Linear expansion coefficient 10x10-6/K

DIMENSIONS

Code Dimensions Availability


Info request

Write us to have more info about the item you are viewing
