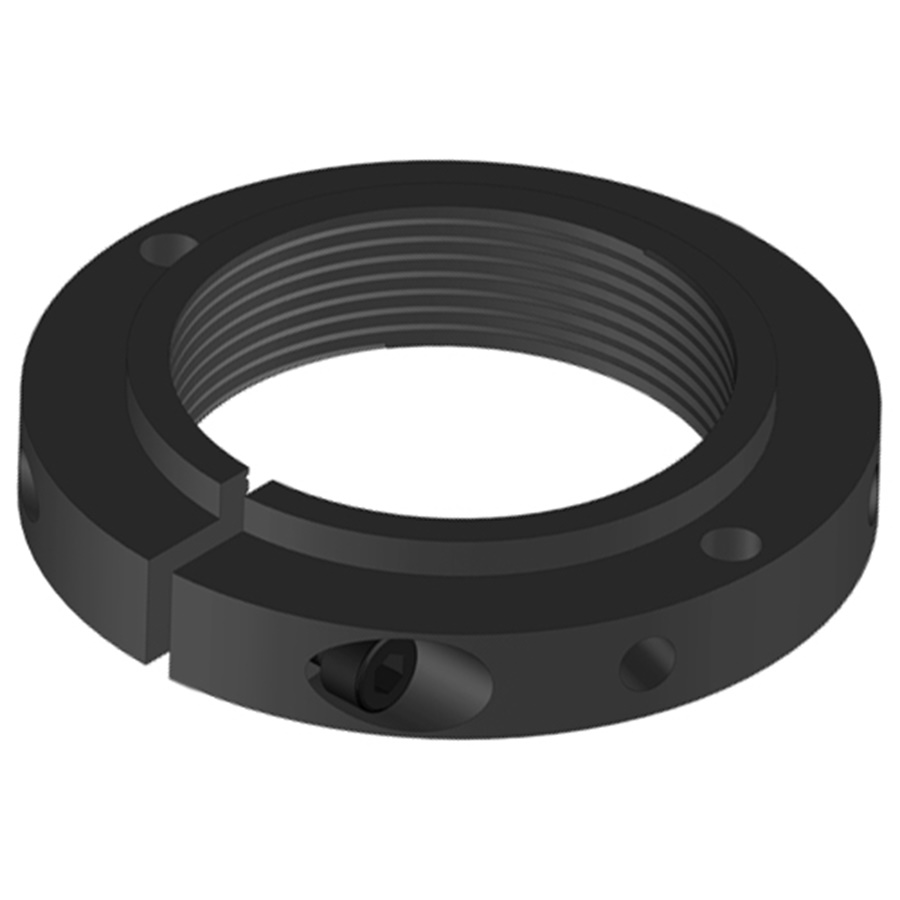

Ghiera in acciaio a bloccaggio radiale

DETTAGLI PRODOTTO

  • Tipo: ALTRI PRODOTTI
  • Categoria: Anelli di bloccaggio e ghiere

Trattamento superficiale: brunitura
A richiesta: zincatura
Spigoli smussati: 0.5 x 45°

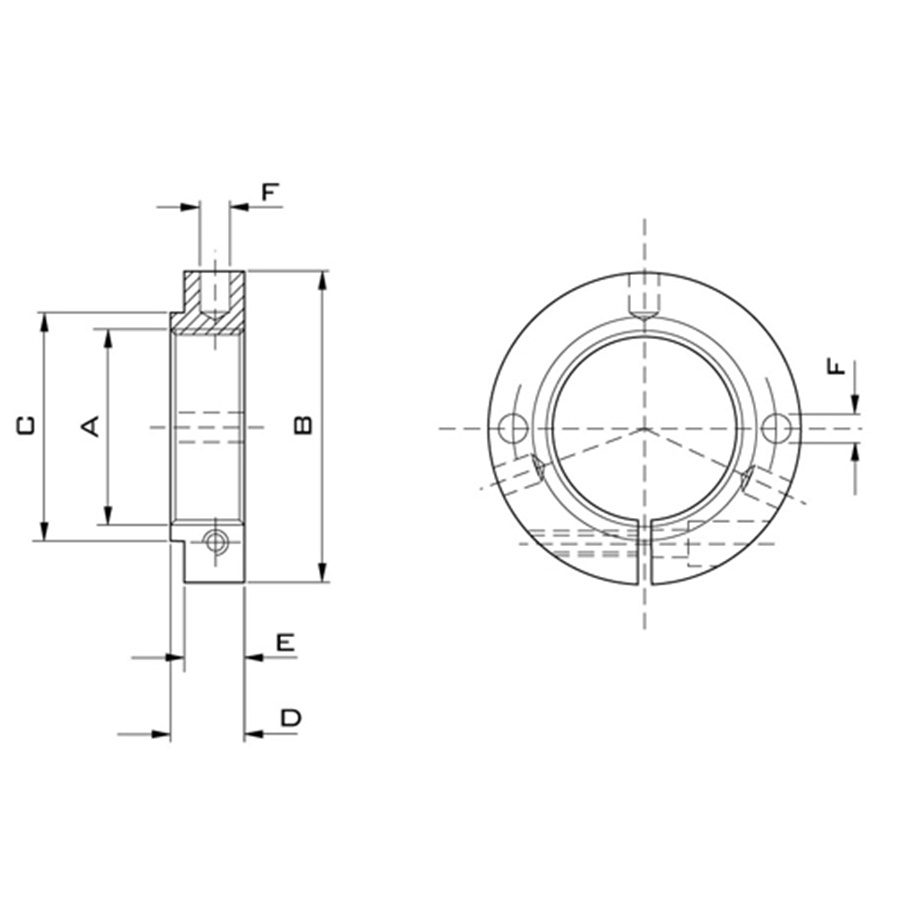

GHIERA VITE
Codice A B C D E F PESO
gr.
Codice Ø TSEI
5.0500.28.00P14 M20 x 1 35 / 9,5 / 4 40 7.2501.01.00P15 M4 x 12
5.0500.47.00P00 M25 x 1,5 38 30 11 9 4 50 7.2500.01.00P15 M3 x 12
5.0500.16.00P14 M30 x 1 42,7 35 12 9 4 55 7.2500.01.00P15 M3 x 12
5.0500.48.00P00 M30 x 1,5 48 36 12 9 5 80 7.2501.02.00P00 M4 x 15
5.0500.56.00P00 M35 x 1,5 54 42 12 9 5 100 7.2501.02.00P00 M4 x 15
5.0500.01.00P14 M40 x 1,5 63 46 15 12 6 170 7.2502.02.00P15 M5 x 20
5.0500.06.00P14 M54 x 1,5 82 62 16 12 6 280 7.2503.01.00P15 M6 x 20
5.0500.11.00P14 M66 x 1,5 105 78 16 12 8 500 7.2503.03.00P15 M6 x 30
5.0500.20.00P14 M78 x 2 129 92 18 14 8 910 7.2504.02.00P15 M8 x 35
5.0500.26.00P14 M90 x 2 159 104 18 14 8 1450 7.2504.03.00P15 M8 x 45
